Products >> Hotel Lock >> Economic Hotel Lock

Hotel Lock 2029

Product No.：2020430144147
Color：Silver/Black
Material：Stainless Steel
Size：270*68*12mm
Open Way：Card+Mechanical Key
Application：Hotel/Motel/Apartment/Flat/School/Office
Online Inquiry

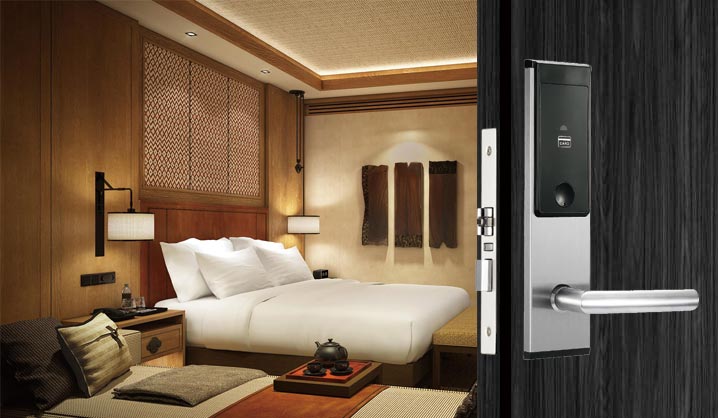

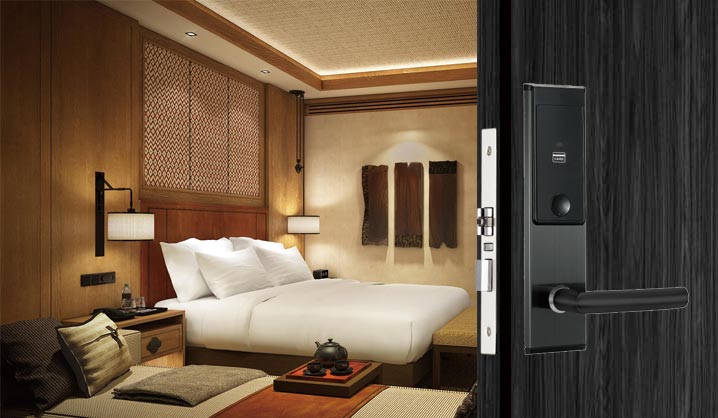

2029E Introducing:
2029E model is a kind of economic model for small or chain hotels, motels, aparments and flats, which is cheaper and easier to install.
The material of 2029E panel is stainless steel, it is suitable for rooms near seaside or humid situation, not easy to get rust.

2029E Features:
Lock Size: 270*68*62mmmm
Color Optional: Technology Silver / Gun Black
Panel Material: Stainless Steel
Hotel Lock System: proUSB / TTLock / Tuya
Frequency: 125KHz / 13.56MHz
System Type: 125KHz T57 or 13.56MHz Mifare S50
PCB Type: Temic or M1
Key Card: T5577 Card / Mifare S50 Card
Default Mortise: 3# Short Mortise
Power Supply: DC 6V 4pcs AA Battery
Open Lock Ways: Read Keycard / Blutooth/ Mechanical Key

2029E Hotel Lock And Mortise Size:

Optional Mortise Size:
hireadlock optional mortise 4# picture and size

Mortise Introducing:
There are 2 mortises for optional: Mortise 3# and Mortise 4#
Mortise 3# is default mortise, widely used for wood doors.
Mortise 4# is for optional, for some thinner wood doors, or upgrade mechanical door locks. Europe market likes to use thinner mortise.

Cylinder:
hireadlock cylinder picture and introducing

Part List:

Lock Front Panel	1pc
Lock Back Panel	1pc
Mortise(Default 3#)	1pc
Cylinder	1pc
Mechanical Keys	2pcs
Door Holder	1pc

*Accessories can be provided for replacing broken parts.
Installation Guide:

Click here to download installation guide document in PDF.
Function Introducing:

There are 5 function types of this lock model for your optional:
1, ProUSB Hotel Lock
2, M1-ID Independent Lock
3, ProUSB+Tuya APP Bluetooth Lock
4, Tuya APP Bluetooth Lock
5, TTLock APP Bluetooth Lock

Opening Direction:
hireadlock hotel lock open direction
